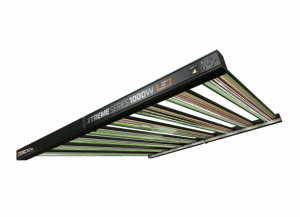

The Dimlux Xtreme Series LED 1000W +NIR is a professional high-output LED grow light designed for intensive indoor horticultural cultivation.
The fixture combines a 1000 W LED light source with an adjustable PhytoVegSpec® Indoor +NIR spectrum, allowing growers to control both the intensity and spectral composition of the light according to cultivation requirements.
With an AC input power of 1065 W at 230 V, the +NIR configuration produces a photosynthetic photon flux of 2,879 µmol/s within the 400–700 nm PAR range.
Its total photon output reaches 3,089 µmol/s across the extended 350–800 nm wavelength range, with a PAR photon efficacy of 2.7 µmol/J and a total photon efficacy of 2.9 µmol/J.
The adjustable spectrum combines conventional horticultural lighting wavelengths with additional near-infrared radiation, offering increased flexibility for managing plant responses during different development stages.
Light output and spectral settings can be programmed according to the time of day and growth stage, allowing more precise management of lighting conditions.
The fixture is designed to provide high light intensity with uniform distribution across a cultivation area of approximately 150 × 150 cm.
Its patented Deep Penetration Ultra High Transmittance lenses direct light into the plant canopy, supporting efficient photon distribution and illumination of lower plant areas.
The 90° × 120° beam angle provides controlled light distribution across the growing space.
An integrated multi-colour auxiliary Light Pipe offers more than 65,000 colour options and can provide additional visual illumination, including green working light during dark periods.
The Light Pipe can be activated automatically through the integrated Doppler radar proximity sensor.
The fixture features a 1.54-inch IPS colour display for viewing lighting settings, spectral configurations, operating status and system information.
Lighting functions can be controlled using the integrated controller or a compatible Dimlux MaxiController.
Three Smartports provide connection options for Interlink communication, a plant temperature sensor and a light sensor.
The passive thermal management system dissipates heat without mechanical cooling fans, supporting quiet operation and reliable thermal performance.
With an IP65 protection rating, the fixture is protected against dust ingress and water jets, making it suitable for demanding indoor cultivation environments.
The adjustable mounting height ranges from approximately 40 to 85 cm above the plant canopy, depending on the lighting requirements and installation configuration.
The Dimlux Xtreme Series LED 1000W +NIR combines high photon output, adjustable spectrum technology, advanced optics and intelligent lighting control for professional horticultural applications.
Die Dimlux Xtreme Series LED 1000W +NIR ist eine professionelle Hochleistungs-LED-Pflanzenlampe für den intensiven Indoor-Gartenbau.
Die Leuchte kombiniert eine 1000-W-LED-Lichtquelle mit einem einstellbaren PhytoVegSpec® Indoor +NIR-Spektrum und ermöglicht dadurch die Anpassung sowohl der Lichtintensität als auch der spektralen Zusammensetzung an die jeweiligen Kultivierungsanforderungen.
Mit einer AC-Leistungsaufnahme von 1065 W bei 230 V erzeugt die +NIR-Konfiguration einen photosynthetischen Photonenstrom von 2.879 µmol/s innerhalb des PAR-Bereichs von 400–700 nm.
Der gesamte Photonenstrom erreicht 3.089 µmol/s im erweiterten Wellenlängenbereich von 350–800 nm. Die PAR-Photoneneffizienz beträgt 2,7 µmol/J und die Gesamtphotoneneffizienz 2,9 µmol/J.
Das einstellbare Spektrum kombiniert herkömmliche gartenbauliche Lichtwellenlängen mit zusätzlicher Nahinfrarotstrahlung und bietet dadurch mehr Flexibilität bei der Steuerung pflanzlicher Reaktionen während unterschiedlicher Entwicklungsphasen.
Die Lichtleistung und die Spektraleinstellungen können entsprechend der Tageszeit und der Wachstumsphase programmiert werden, wodurch eine präzisere Steuerung der Beleuchtungsbedingungen möglich ist.
Die Leuchte wurde für eine hohe Lichtintensität und gleichmässige Lichtverteilung über einer Kultivierungsfläche von ca. 150 × 150 cm entwickelt.
Die patentierten Deep Penetration Ultra High Transmittance-Linsen lenken das Licht gezielt in den Pflanzenbestand und unterstützen dadurch eine effiziente Photonenverteilung sowie die Beleuchtung tiefer liegender Pflanzenbereiche.
Der Abstrahlwinkel von 90° × 120° ermöglicht eine kontrollierte Lichtverteilung über der Anbaufläche.
Eine integrierte mehrfarbige Light Pipe bietet über 65.000 Farboptionen und kann zusätzliche visuelle Beleuchtung bereitstellen, darunter grünes Arbeitslicht während der Dunkelphase.
Die Light Pipe kann über den integrierten Doppler-Radar-Näherungssensor automatisch aktiviert werden.
Die Leuchte verfügt über ein 1,54-Zoll-IPS-Farbdisplay zur Anzeige von Beleuchtungseinstellungen, Spektralkonfigurationen, Betriebsstatus und Systeminformationen.
Die Beleuchtungsfunktionen können über den integrierten Controller oder einen kompatiblen Dimlux MaxiController gesteuert werden.
Drei Smartports ermöglichen Anschlüsse für Interlink-Kommunikation, einen Pflanzentemperatursensor und einen Lichtsensor.
Das passive Kühlsystem leitet Wärme ohne mechanische Kühlventilatoren ab und unterstützt dadurch einen geräuscharmen Betrieb und eine zuverlässige Temperaturregelung.
Mit der Schutzart IP65 ist die Leuchte gegen das Eindringen von Staub und gegen Strahlwasser geschützt und eignet sich damit für anspruchsvolle Indoor-Kultivierungsumgebungen.
Die Montagehöhe über dem Pflanzenbestand liegt je nach Lichtbedarf und Installationskonfiguration zwischen ca. 40 und 85 cm.
Die Dimlux Xtreme Series LED 1000W +NIR kombiniert einen hohen Photonenstrom, einstellbare Spektraltechnologie, fortschrittliche Optik und intelligente Beleuchtungssteuerung für professionelle Gartenbauanwendungen.
