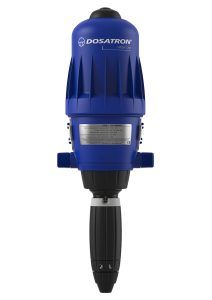

Dosatron D3 RE5 VF
+4
+3
+2

Dosatron D3 RE5 VF

SKU DOS8
906.55 CHF
On backorder
Price per unit: 980 CHF
Dosatron D3 RE5 VF.
1
Dosatron D3 RE5 VF
Product Details
Brand: Dosatron

Dosatron D3RE5 VF Proportional Dosing Pump

The Dosatron D3RE5 VF is a professional water-powered proportional dosing pump designed for accurate injection of concentrated additives into flowing water.

The VF version is equipped with dosing seals recommended for acidic additives, making this configuration particularly suitable for applications involving compatible acidic concentrates.

The pump operates directly from water flow and pressure and does not require electricity for the dosing process.

As water passes through the unit, the hydraulic mechanism draws concentrated additive from a separate container and injects it proportionally into the water stream.

The quantity of concentrate injected remains proportional to the volume of water passing through the pump. This helps maintain the selected dosing ratio even when the water flow changes.

With an adjustable injection range of 0.5–5%, corresponding to a dosing ratio from 1:200 to 1:20, the D3RE5 VF provides a broad dosing range for applications requiring moderate concentrate levels.

The unit operates across a water-flow range from 10 to 3,000 l/h and an operating pressure range from 0.3 to 6 bar.

Depending on water flow and the selected dosing percentage, concentrated additive can be injected at a rate from 0.05 to 150 l/h.

The D3RE5 features an optimised polypropylene pump body and an ergonomic dosing adjustment system for straightforward and precise configuration.

Injection takes place at the outlet of the pump, while the D3 platform supports both micro- and macro-dosing applications.

A standard 3/4" male connection allows straightforward integration into compatible water lines and dosing installations.

The supplied PVC suction hose draws concentrated additive from a separate container into the dosing system.

An optional integrated bypass allows additive suction to be manually activated or stopped without changing the selected dosing setting.

For particularly aggressive concentrates, additional configurations and chemical-resistant components are available.

The combination of water-powered operation, proportional dosing and VF seals makes the D3RE5 VF a practical solution for precise dosing of compatible acidic additives.

Key Benefits

  • Professional proportional dosing pump
  • VF version for acidic additives
  • Water-powered operation
  • No electricity required for dosing
  • Adjustable injection range: 0.5–5%
  • Dosing ratio: 1:200–1:20
  • Water flow range: 10–3,000 l/h
  • Operating pressure: 0.3–6 bar
  • Concentrated additive injection: 0.05–150 l/h
  • Automatic proportional dosing
  • Dosing follows the water flow
  • Maintains the selected dosing ratio
  • Optimised pump design
  • Polypropylene pump body
  • Ergonomic dosing adjustment
  • Injection at pump outlet
  • Suitable for micro- and macro-dosing
  • 3/4" male connection
  • PVC suction hose
  • Optional integrated bypass

Technical Specifications

  • Brand: Dosatron
  • Model: D3RE5 VF
  • Product type: proportional dosing pump
  • Seal configuration: VF
  • Recommended application: compatible acidic additives
  • Operating principle: water-powered proportional dosing
  • Injection range: 0.5–5%
  • Dosing ratio: 1:200–1:20
  • Water flow range: 10–3,000 l/h
  • Operating water pressure: 0.3–6 bar
  • Concentrated additive injection rate: 0.05–150 l/h
  • Stroke volume: approx. 0.53 L
  • Connections: NPT-BSP 3/4" male / 20 × 27 mm
  • Suction hose: PVC Ø 12 × 16 mm
  • Suction hose length: 1.75 m
  • Pump body: polypropylene
  • Injection position: outlet
  • Electricity required for dosing: no

Dosatron D3RE5 VF Proportionale Dosierpumpe

Die Dosatron D3RE5 VF ist eine professionelle wasserbetriebene proportionale Dosierpumpe zur präzisen Dosierung konzentrierter Zusatzstoffe in fliessendes Wasser.

Die VF-Ausführung ist mit Dosierdichtungen ausgestattet, die für saure Zusatzstoffe empfohlen werden. Dadurch eignet sich diese Konfiguration besonders für Anwendungen mit kompatiblen sauren Konzentraten.

Die Pumpe wird direkt durch Wasserdurchfluss und Wasserdruck angetrieben und benötigt für den Dosiervorgang keinen Strom.

Während das Wasser durch das Gerät fliesst, saugt der hydraulische Mechanismus das konzentrierte Produkt aus einem separaten Behälter an und dosiert es proportional in den Wasserstrom.

Die dosierte Konzentratmenge bleibt proportional zum Wasservolumen, das durch die Pumpe fliesst. Dadurch wird das eingestellte Dosierverhältnis auch bei Veränderungen des Wasserdurchflusses aufrechterhalten.

Mit einem einstellbaren Dosierbereich von 0,5–5 %, entsprechend einem Dosierverhältnis von 1:200 bis 1:20, bietet die D3RE5 VF einen breiten Dosierbereich für Anwendungen mit mittleren Konzentratmengen.

Das Gerät arbeitet innerhalb eines Wasserdurchflussbereichs von 10 bis 3.000 l/h und eines Betriebsdruckbereichs von 0,3 bis 6 bar.

Abhängig vom Wasserdurchfluss und der eingestellten Dosierung können konzentrierte Zusatzstoffe mit einer Menge von 0,05 bis 150 l/h dosiert werden.

Die D3RE5 verfügt über ein optimiertes Pumpengehäuse aus Polypropylen und eine ergonomische Dosierverstellung für eine unkomplizierte und präzise Einstellung.

Die Einspritzung erfolgt am Ausgang der Pumpe. Die D3-Plattform eignet sich sowohl für Mikro- als auch für Makrodosierungsanwendungen.

Ein standardisierter 3/4"-Aussengewindeanschluss ermöglicht eine unkomplizierte Integration in kompatible Wasserleitungen und Dosieranlagen.

Der mitgelieferte PVC-Ansaugschlauch saugt das konzentrierte Produkt aus einem separaten Behälter in das Dosiersystem.

Ein optionaler integrierter Bypass ermöglicht das manuelle Ein- und Ausschalten der Produktansaugung, ohne die eingestellte Dosierung zu verändern.

Für besonders aggressive Konzentrate stehen zusätzliche Konfigurationen und chemikalienbeständige Komponenten zur Verfügung.

Die Kombination aus wasserbetriebenem Betrieb, proportionaler Dosierung und VF-Dichtungen macht die D3RE5 VF zu einer praktischen Lösung für die präzise Dosierung kompatibler saurer Zusatzstoffe.

Wichtigste Vorteile

  • Professionelle proportionale Dosierpumpe
  • VF-Ausführung für saure Zusatzstoffe
  • Wasserbetriebene Funktionsweise
  • Kein Strom für die Dosierung erforderlich
  • Einstellbarer Dosierbereich: 0,5–5 %
  • Dosierverhältnis: 1:200–1:20
  • Wasserdurchfluss: 10–3.000 l/h
  • Betriebsdruck: 0,3–6 bar
  • Dosierung konzentrierter Zusatzstoffe: 0,05–150 l/h
  • Automatische proportionale Dosierung
  • Dosierung folgt dem Wasserdurchfluss
  • Hält das eingestellte Dosierverhältnis
  • Optimierte Pumpenkonstruktion
  • Pumpengehäuse aus Polypropylen
  • Ergonomische Dosierverstellung
  • Einspritzung am Pumpenausgang
  • Für Mikro- und Makrodosierung geeignet
  • 3/4"-Aussengewinde
  • PVC-Ansaugschlauch
  • Optionaler integrierter Bypass

Technische Daten

  • Marke: Dosatron
  • Modell: D3RE5 VF
  • Produkttyp: proportionale Dosierpumpe
  • Dichtungsausführung: VF
  • Empfohlene Anwendung: kompatible saure Zusatzstoffe
  • Funktionsprinzip: wasserbetriebene proportionale Dosierung
  • Dosierbereich: 0,5–5 %
  • Dosierverhältnis: 1:200–1:20
  • Wasserdurchfluss: 10–3.000 l/h
  • Betriebswasserdruck: 0,3–6 bar
  • Dosierung konzentrierter Zusatzstoffe: 0,05–150 l/h
  • Hubvolumen: ca. 0,53 L
  • Anschlüsse: NPT-BSP 3/4" Aussengewinde / 20 × 27 mm
  • Ansaugschlauch: PVC Ø 12 × 16 mm
  • Ansaugschlauchlänge: 1,75 m
  • Pumpengehäuse: Polypropylen
  • Einspritzposition: Ausgang
  • Strom für Dosierung erforderlich: nein
